Foxit PDF SDK Node.js Library ​

This section describes how to run samples and create a basic project using the Foxit PDF SDK Node.js library. The project demonstrates rendering the first page of a PDF document to a bitmap and saving it as a JPG image.

Prerequisites ​

Development environment ​

  • Node.js version: Supports v10–v22.
  • Foxit PDF SDK Node.js library: Request a trial via the Foxit Developer Hub. Download and install the library that matches your OS and architecture.

System support ​

We provide detailed system support information for Windows, Linux, and macOS, including operating system versions and compiler requirements. Select your platform to view the details.

Windows Linux MacOS

Setup ​

Install the SDK Node.js library ​

Open a command-line or terminal window, navigate to the root directory, and install the Foxit PDF SDK Node.js module with the following command:

shell
npm i @fuxinsoft/foxit-pdf-sdk-node

Run samples ​

Run all samples ​

  • See Samples for an overview of the sample projects, dependency information for specific samples, and instructions for running samples from the command line.

Run a specific sample ​

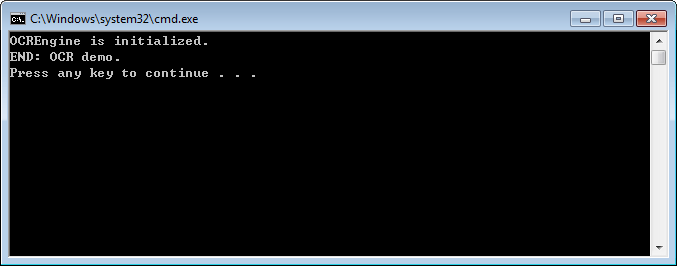

  • Navigate to the sample directory, for example \examples\simple_demo\ocr, and run node ocr.js.

Quick start ​

  1. Create a project directory:

    • Create a folder named test as the project directory.

  2. Prepare a PDF file:

    • Copy SamplePDF.pdf from /example/simple_demo/input_files into the test folder.

  3. Install the SDK module:

    • In the test folder, run npm install @fuxinsoft/foxit-pdf-sdk-node from the command line to install the Foxit PDF SDK Node.js module.

  4. Create a Node.js script:

    • In the test folder, create a Node.js script named test.js and copy the following code into the file:
    [test.js]
    js
    const FSDK = require("@fuxinsoft/foxit-pdf-sdk-node");

# Assuming PDFDoc doc has been loaded.
# The value of "sn" can be got from "gsdk_sn.txt" (the string after "SN=").
# The value of "key" can be got from "gsdk_key.txt" (the string after "Sign=").
var sn = " "
var key = " "
FSDK.Library.Initialize(sn, key);

// Load a PDF document, and parse the first page of the document.
let doc = new FSDK.PDFDoc("SamplePDF.pdf");
let error_code = doc.Load("");
if(error_code!= FSDK.e_ErrSuccess) {
  return;
}

let page = doc.GetPage(0);
page.StartParse(FSDK.PDFPage.e_ParsePageNormal, null, false);

let width = page.GetWidth();
let height = page.GetHeight();
let matrix = page.GetDisplayMatrix(0, 0, width, height, page.GetRotation());

// Prepare a bitmap for rendering.
let bitmap = new FSDK.Bitmap(width, height, Bitmap.e_DIBArgb, null, 0);
bitmap.FillRect(0xFFFFFFFF, null);
// Render page.
render = Renderer(bitmap, false)
render.StartRender(page, matrix, null)

// Add the bitmap to image and save the image.
let img = new FSDK.Image();
img.AddFrame(bitmap);
img.SaveAs("testpage.jpg");
FSDK.Library.Release();

  5. Run the script:

    • In the command line, switch to the test folder and run node test.js.
    • If the script runs successfully, a testpage.jpg file is generated in the test folder containing the rendered first page of the PDF document.
