CORS

Overview

What is CORS

CORS (Cross-Origin Resource Sharing) is a W3C mechanism that uses extra HTTP response headers so browsers can allow a page to access resources from another origin, beyond the same-origin limits of classic AJAX.

For more detail, see MDN: CORS.

Same-origin policy

The same-origin policy isolates origins to reduce attack surface. It limits how a page or its scripts interact with resources from another origin. For example, an AJAX call to a different origin is blocked and logged in the console.

Two URLs are the same origin when protocol, host, and port match. Examples:

URLs	Result	Reason
`http://www.company.com/` `https://www.company.com/`	Different origin	Different protocol
`http://www.company.com/` `http://www.company.net/`	Different origin	Different host
`http://www.company.com/` `http://blob.company.com/`	Different origin	Different host
`http://www.company.com/` `http://www.company.com:8080/`	Different origin	Different port (default for `http://` is 80)
`http://www.company.com/` `http://www.company.com/blob.html`	Same origin	Path only differs
`http://www.company.com/blog/index.html` `http://www.company.com/blob.html`	Same origin	Path only differs
`http://192.168.0.1/` `http://192.168.1.1`	Different origin	Different IP

Simple vs non-simple CORS requests

Browsers classify CORS requests as simple or non-simple.

A request is simple only if:

The method is HEAD, GET, or POST.
Headers are limited to:
- Accept
- Accept-Language
- Content-Language
- Last-Event-ID
- Content-Type is one of: application/x-www-form-urlencoded, multipart/form-data, text/plain.

Browsers handle simple and non-simple requests differently.

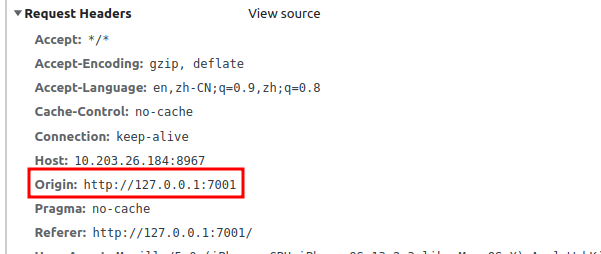

Simple requests

The browser sends the request with an Origin header.

Origin identifies the page’s origin (protocol, host, port). The server can set Access-Control-Allow-Origin to allow or deny the response.

Non-simple requests

For non-simple requests, the browser first sends an OPTIONS preflight request to ask whether the cross-origin request is allowed.

After the preflight response, the browser checks headers such as Access-Control-Allow-Origin and Access-Control-Allow-Methods before sending the actual request.

Typical CORS errors

Missing Access-Control-Allow-Origin:

text

Access to fetch at 'http://127.0.0.1:8967/1.pdf' from origin 'http://127.0.0.1:7001' has been blocked by CORS policy:
No 'Access-Control-Allow-Origin' header is present on the requested resource.
If an opaque response serves your needs, set the request's mode to 'no-cors' to fetch the resource with CORS disabled.

Invalid Access-Control-Allow-Origin value:

text

Access to fetch at '<target origin, e.g. http://192.168.0.1:8080>' from origin 'http://127.0.0.1:7001' has been blocked by CORS policy:
The 'Access-Control-Allow-Origin' header contains the invalid value '<header value>'.
Have the server send the header with a valid value, or, if an opaque response serves your needs,
set the request's mode to 'no-cors' to fetch the resource with CORS disabled.

Access-Control-Allow-Origin mismatch

text

Access to fetch at 'http://127.0.0.1:8967/1.pdf' from origin 'http://127.0.0.1:7001' has been blocked by CORS policy: Response to preflight request doesn't pass access control check: The 'Access-Control-Allow-Origin' header has a value '<header value, e.g. http://127.0.0.1:9999>' that is not equal to the supplied origin. Have the server send the header with a valid value, or, if an opaque response serves your needs, set the request's mode to 'no-cors' to fetch the resource with CORS disabled.

Missing Access-Control-Allow-Headers

text

Access to fetch at 'http://127.0.0.1:8967/1.pdf' from origin 'http://127.0.0.1:7001' has been blocked by CORS policy: Request header field range is not allowed by Access-Control-Allow-Headers in preflight response

CORS solutions

Use a proxy to avoid cross-origin requests from the browser, or configure CORS on the file server.

Proxy server

A proxy sits between the client and the target server. The browser talks to the same origin as the app, so CORS does not apply. Below: Nginx and Node.js proxy /prefix/* to http://third_party.file.server, stripping /prefix. Example: http://location:3000/prefix/path/to/some.pdf → http://third_party.file.server/path/to/some.pdf.

Nginx proxy

Edit your Nginx config (often /etc/nginx/nginx.conf), find the server block, and add:

nginx

location ~* ^/prefix/(.*) {
    proxy_pass http://third_party.file.server/$1$is_args$args;
    proxy_redirect off;
}

Nginx rewrites the path and forwards requests that start with /prefix to the file server.

Node.js proxy

Examples for Express, Koa, and NestJS.

Express

Use http-proxy-middleware:

javascript

const express = require('express');
const { createProxyMiddleware } = require('http-proxy-middleware');
const app = express();

app.use('/prefix', createProxyMiddleware({
    target: 'http://third_party.file.server',
    changeOrigin: true,
    pathRewrite: {
        ['^/prefix']: ''
    }
}));

See https://www.npmjs.com/package/http-proxy-middleware.

Koa

Use koa-proxy:

javascript

const Koa = require('koa');
const proxy = require('koa-proxy');
const app = new Koa();

app.use(
    proxy('/prefix', {
        host: 'http://third_party.file.server',
        match: /^\/prefix\/,
        map: function(path) {
            return path.replace('/prefix', ''); / Remove /prefix from the path
        }
    })
)

See https://www.npmjs.com/package/koa-proxy.

NestJS

Same pattern with http-proxy-middleware:

typescript

import { NestFactory } from '@nestjs/core';
import { AppModule } from './app.module';
import { createProxyMiddleware } from 'http-proxy-middleware';

async function bootstrap() {
    const app = await NestFactory.create(AppModule);

    / Proxy endpoints
    app.use('/prefix', createProxyMiddleware({
        target: 'http://third_party.file.server',
        changeOrigin: true,
        pathRewrite: {
            [`^/prefix`]: '',
        }
    }));
    await app.listen(3000);
}
bootstrap();

Configure CORS

In Foxit PDF SDK for Web, PDFViewer.openPDFByHttpRangeRequest often needs CORS. The API sends Range requests and reads Content-Range for file size. Configure at least:

bash

Access-Control-Allow-Headers: Range;
Access-Control-Allow-Origin: *; / For production, prefer matching the request Referer origin
Access-Control-Expose-Headers: Content-Range; / Exposed headers are readable from JavaScript

Scenarios below show common server setups.

Web server CORS

Nginx

Add to nginx.conf (often /etc/nginx/nginx.conf):

nginx

server {
    listen 8967;
    server_name 127.0.0.1;
    charset utf8;
    location / {
        root "/path/to/files/directory/";
        if ($request_method = OPTIONS) {
            add_header 'Access-Control-Allow-Headers' 'Range';
            add_header 'Access-Control-Allow-Origin' '*';
            add_header 'Access-Control-Expose-Headers' 'Content-Range';
            return 204;
        }
        add_header 'Access-Control-Allow-Headers' 'Range';
        add_header 'Access-Control-Allow-Origin' '*';
        add_header 'Access-Control-Expose-Headers' 'Content-Range';
    }
}

* allows any origin—convenient but insecure. Restrict by origin in production:

Map allowed origins (example: foxit.com subdomains):

nginx

map $http_origin $cors {
    '~*^https?://.*.foxit.com$' 'true';
}

Set Access-Control-Allow-Origin when $cors is true:

nginx

map $cors $allow_origin {
    'true' $http_origin;
}

Map Access-Control-Allow-Headers for CORS requests:

nginx

map $cors $allow_headers {
    'true' 'Range';
}

Combined example:

nginx

map $http_origin $cors {
    '~*^https?://.+.foxit.com$' 'true';
}
map $cors $allow_origin {
    'true' $http_origin;
}
map $cors $allow_headers {
    'true' 'Range';
}
map $cors $allow_expose_headers {
    'true' 'Content-Range';
}
server {
    listen 8967;
    server_name 127.0.0.1;
    charset utf8;
    location / {
        root "/path/to/files/directory/";
        if ($request_method = OPTIONS) {
            add_header 'Access-Control-Allow-Headers' $allow_headers;
            add_header 'Access-Control-Allow-Origin' $allow_origin;
            add_header 'Access-Control-Expose-Headers' $allow_expose_headers;
            return 204;
        }
        add_header 'Access-Control-Allow-Headers' $allow_headers;
        add_header 'Access-Control-Allow-Origin' $allow_origin;
        add_header 'Access-Control-Expose-Headers' $allow_expose_headers;
    }
}

Run nginx -t, then nginx -s reload if the test passes.

Tomcat

Example CORS filter; see Tomcat docs

xml

<filter>
    <filter-name>CorsFilter</filter-name>
    <filter-class>org.apache.catalina.filters.CorsFilter</filter-class>
</filter>
<init-param>
    <param-name>cors.allowed.origins</param-name>
    <param-value>https://*.foxit.org</param-value>
</init-param>
<init-param>
    <param-name>cors.allowed.headers</param-name>
    <param-value>Range</param-value>
</init-param>
<init-param>
    <param-name>cors.exposed.headers</param-name>
    <param-value>Content-Range</param-value>
</init-param>

<filter-mapping>
    <filter-name>CorsFilter</filter-name>
    <url-pattern>/*</url-pattern>
</filter-mapping>

Apache

Add to <Directory>, <Location>, <Files>, or <VirtualHost> in httpd.conf or apache.conf:

yaml

Header set Access-Control-Allow-Origin '*';
Header set Access-Control-Allow-Headers 'Range';
Header set Access-Control-Expose-Headers 'Content-Range';

Or in .htaccess:

yaml

<IfModule mod_headers.c>
    Header set Access-Control-Allow-Origin '*';
    Header set Access-Control-Allow-Headers 'Range';
    Header set Access-Control-Expose-Headers 'Content-Range';
</IfModule>

Run apachectl -t, then reload Apache. Prefer set over add to avoid duplicate headers.

IIS

Steps differ for IIS 6 vs IIS 7.

IIS 6
Site properties → HTTP Headers → Add: Access-Control-Allow-Headers: Range, Access-Control-Allow-Origin: *, Access-Control-Expose-Headers: Content-Range.

IIS 7

Add to web.config:

xml

<?xml version="1.0" encoding="utf-8"?>
<configuration>
<system.webServer>
<httpProtocol>
   <customHeaders>
   <add name="Access-Control-Allow-Origin" value="*" />
   <add name="Access-Control-Allow-Headers" value="Range" />
   <add name="Access-Control-Expose-Headers" value="Content-Range" />
   </customHeaders>
</httpProtocol>
</system.webServer>
</configuration>

Cloud storage CORS

Many object stores and CDNs document CORS setup. Examples:

Framework CORS

Node.js
1. Express: express cors middleware
2. Koa: @koa/cors
3. NestJS: CORS | NestJS
Spring Boot: Enabling CORS for a REST service
Django: django-cors-headers
Laravel: laravel-cors
