Foxit PDF SDK for Web

How to implement Foxit PDF SDK for Web on AngularJS

With Foxit PDF SDK for Web 7.1, we have developed the interface to implement our web viewer into the AngularJS framework. This article will help you get your Foxit PDF SDK for Web project up and running with AngularJS.

System Requirements

NodeJS 10.9 or higher

Install AngularJS using Node

In your console window, enter the command below:

npm install -g @angular/cli

Figure 1-1

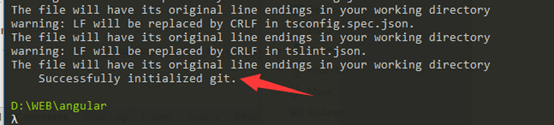

Create an AngularJS project

On your console window, enter the command below:

ng new projectName

Figure 1-2

Figure 1-3

Implementing Foxit PDF SDK for Web in your AngularJS project

Foxit PDF SDK for Web Installation

Enter your AngularJS project location on your console window and run the command below:

npm install ngx-foxitpdfsdkforweb --save

Figure 1-4

Configuration

angular.json

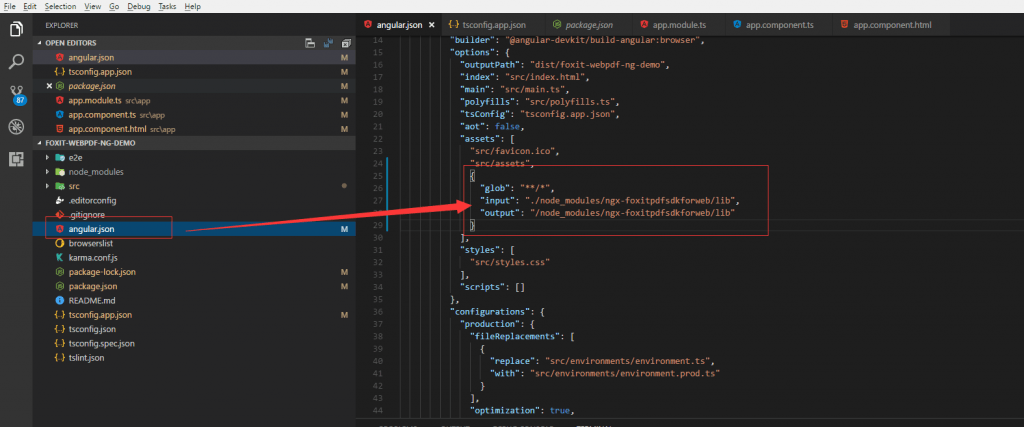

Modify the ‘angular.json’ file by adding the sample code below to the ‘assets’ element, as shown in the image:

{
"glob": "**/*",
"input": "./node_modules/ngx-foxitpdfsdkforweb/lib",
"output": "/node_modules/ngx-foxitpdfsdkforweb/lib"
}

Figure 1-5

tsconfig.json

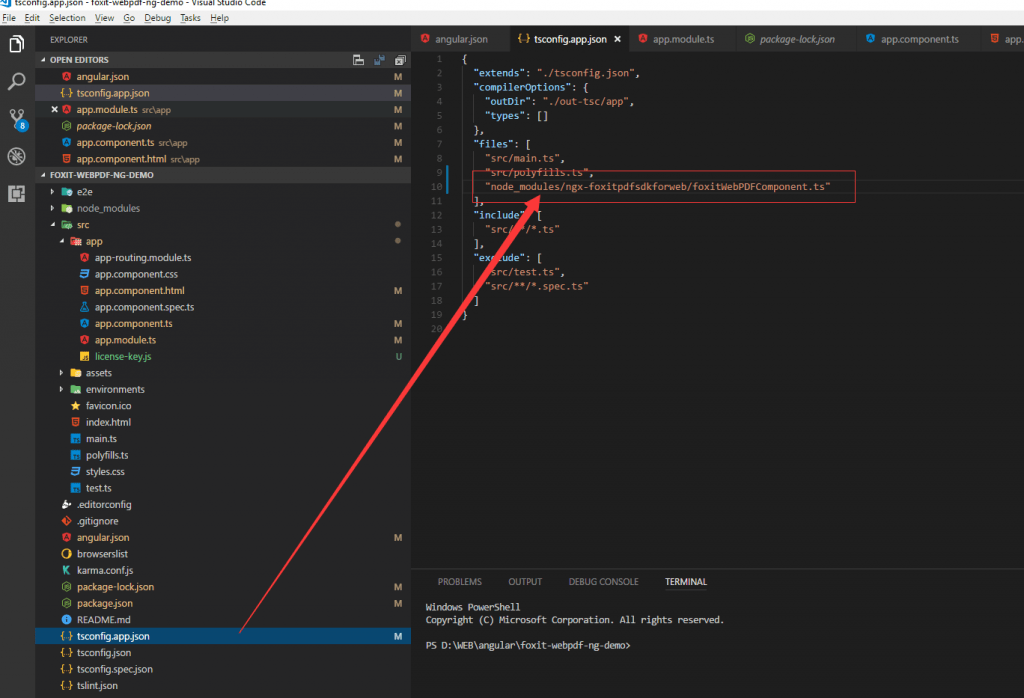

Modify the ‘tsconfig.json’ file by adding the sample code below to the ‘assets’ element, as shown in the image:

 "node_modules / ngx-foxitpdfsdkforweb / foxitWebPDFComponent.ts"

Figure 1-6

Adding ‘FoxitWebPDFComponent‘ to your app

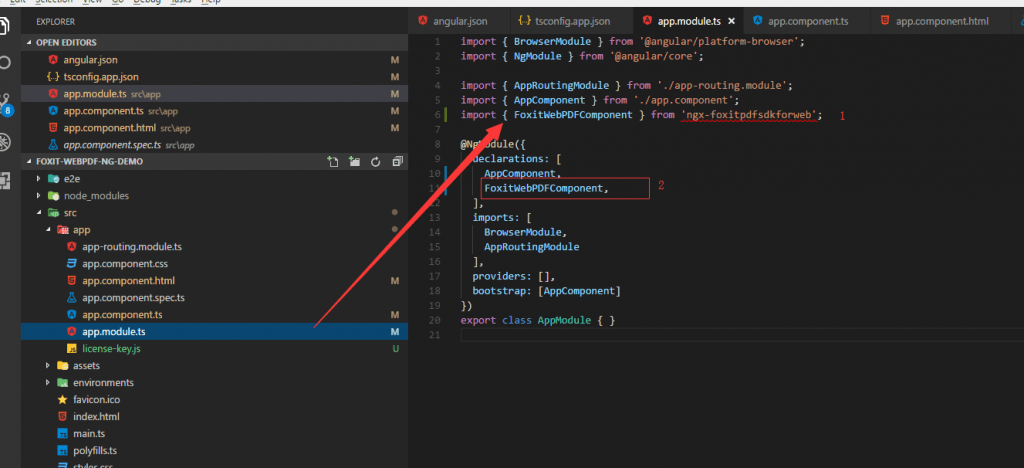

Add the import statement ‘FoxitWebPDFComponent’ and ‘FoxitWebPDFComponent’ reference to the app.module.ts file as below:

import {FoxitWebPDFComponent} from 'ngx-foxitpdfsdkforweb';

@Module ({
  declarations: [
    ...
    FoxitWebPDFComponent,
  ],
  ...
})

Figure 1-7

License Key

Add the license key code to the app.component.html file:

<foxit-webpdf #foxitWebPDF style="position: absolute;width:1200px;height:1000px;" licenseSN="{{licenseSN}}" licenseKey="{{licenseKey}}" ……" ></foxit-webpdf>

Figure 1-8

Now, import the license key file into the ‘app.component.ts’ file as shown below:

import { licenseSN, licenseKey} from './license-key';

Figure 1-9

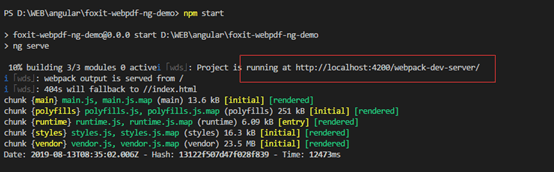

Run the project

Enter your AngularJS project location on your console window and run the command below:

npm install -g @angular/cli

Figure 1-10

Figure 1-11

Updated on August 16, 2021
